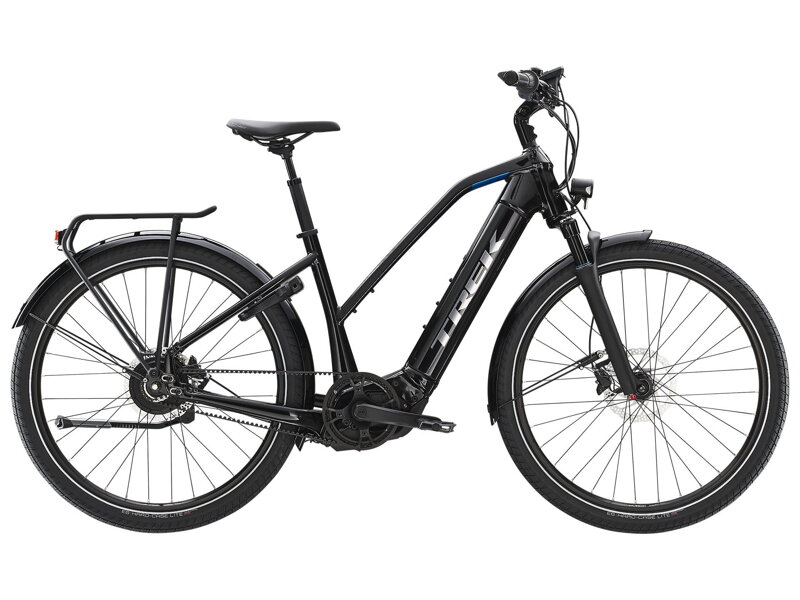

Trek Allant+ 9 Stagger 2022 electric bike black

The Allant+ 9 Stagger is built for dedicated e-bike riders who value high performance, style and capability.

It's the ideal commuter choice for anyone who prefers the power and reliability of a Bosch pedal assist system, riders who appreciate great design and anyone who's tired of waiting in traffic and paying for parking.

In addition, the suspension fork and seatpost provide bump-smoothing comfort, while the belt drive and CVT hub reduce maintenance.

This electric city and trekking bike with Gates belt drive and Enviolo automatic shifting is designed for comfort, reliability and minimal maintenance. Equipped with a powerful Bosch Performance CX drive and quality components, it offers a great riding experience in and out of the city. The frame is compatible with the Range Boost battery extension, so it's ready for long trips.

Frame and suspension

• Durable forged aluminum alloy frame with integrated removable battery and clean look thanks to internal cable routing

• Compatible with the optional Range Boost battery for extended range

• Integrated motor unit protection (Motor Armour)

• SR Suntour Mobie25 coil spring fork with lockout and 50 mm travel (maximum 63 mm), ideal for absorbing bumps in the city and on bike paths

• Post mount disc brakes front and rear

Wheels and tires

• Bontrager front hub with sealed bearings, 15 mm thru axle

• Enviolo Trekking rear hub with smooth, jump-free gearing, 6-bolt disc mount, 32 holes

• Alex MD35 rims - wide, solid, tubeless ready, 35 mm wide

• Bontrager E6 Hard-Case Lite 27.5 × 2.40" tires with reflective strip for increased safety in traffic

• Maximum compatible tire size: 27.5 × 2.40"

Bosch electric drive

• Powerful Bosch Performance CX motor with 85 Nm torque and 250 W power

• Maximum assistance up to 25 km/h – ideal for legal riding on public roads

• Bosch PowerTube battery with 625 Wh capacity, elegantly integrated into the frame

• Bosch Intuvia display – readable even in daylight, with performance monitoring functions and rides

• Bosch 4A charger for quick energy replenishment

Drive and transmission system

• Enviolo Trekking manual rotary lever for smooth, jump-free shifting

• Belt drive Gates CDX – quiet, clean, almost maintenance-free

• ProWheel 50-tooth front chainring with alloy cover

• Gates CDX 22-tooth rear pulley

• ProWheel cranks:

  • S, M: 170 mm

  • L: 175 mm

• Maximum chainring size: 55T

• Pedals Bontrager City or Wellgo C157 (depending on size), plastic body, boron os

Comfort Components

• Comfortable Bontrager Commuter saddle with padding suitable for longer routes

• Aluminum alloy seatpost with suspension, 31.6 mm diameter, 300 mm length

• Alloy lowriser handlebars, 25 mm travel, 690 mm width, with ergonomic 11° backsweep

• Bontrager Satellite Elite grips with lockable alloy mount

• Bontrager stem, adjustable angle:

  • S, M: 85 mm

  • L: 105 mm

• FSA headset with integrated sealed bearing (1-1/8" - 1.5")

Brakes

• Shimano MT200 hydraulic disc brakes for safe and smooth stopping in all conditions

• Shimano RT56 discs, 180 mm front and rear

• Maximum brake disc size: 180 mm

Practical accessories

• Herrmans MR8 front light, LED, 180 lumens

• Spanninga SOLO rear light - especially for e-bikes

• Sturdy aluminum rear rack compatible with the MIK system - load capacity up to 25 kg

• Pletscher Comp Flex 18 stand for stable parking

• SKS front and rear plastic mudguard - effective protection against dirt and water

Weight and load capacity

• Bike weight in size M: 23.40 kg (without battery)

• Maximum system load: 136 kg (rider + bike + equipment)

This urban and trekking e-bike is ideal for commuting, weekend trips, cycle touring and everyday riding. Thanks to its maintenance-free belt drive, reliable Bosch drive and complete equipment including lights, mudguards and rack, it offers practicality, style and comfort in one package.
